VCA2 inoperable

Setting up a patch in Modular V3 3.12.0 (AU) where I’ve got the first osc controller doing one thing and the second osc controller doing another. I want different decays on each and so I’ve got FILTER 1 and FILTER 2 going to each of VCA 1 and VCA 2. Problem is, VCA 2 is simply dead. I can reroute the second osc controller’s osc’s output through either FILTER 1 or FILTER 2 and connect whichever of those to VCA 1 and I hear the expected output but VCA 2 simply doesn’t pass anything. Yes, both VCAs 1 and 2 are set to Keyboard Trigger On.

Problems with VCA 2 seem to go back at least sixteen years (here and here).

I’m attaching the patch file for reference.
Modular_Preset_Adjutorium Sparkle_20240225_22h49.modux (24.5 KB)

In that preset, the volume of VCA2 is turned all the way down. When I turn it up, I hear both voices.

Modular_Preset_Adjutorium Sparkle_20240226_18h15.modux (24.5 KB)

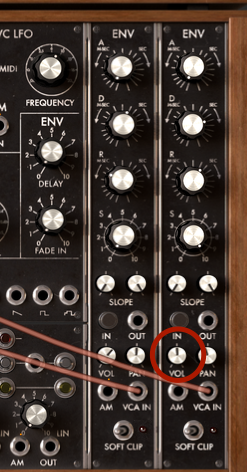

Where on the panel does VCA 2 turn up/down?

Screenshot 2024-02-26 at 2.09.39 PM
