Hi guys, I’m new here and am currently trying to measure my Neumann KH150m with the MA1 Measure system. Can anyone help me set up the routing correctly? I just had a bad feedback loop. I have the MA1 mic plugged into front mic input 1 and my studio monitors are coming out through the normal monitor output 1+2. How do I do the routing without getting a feedback loop?
Any routing that doesn’t send your input 1 to your monitors should be OK.

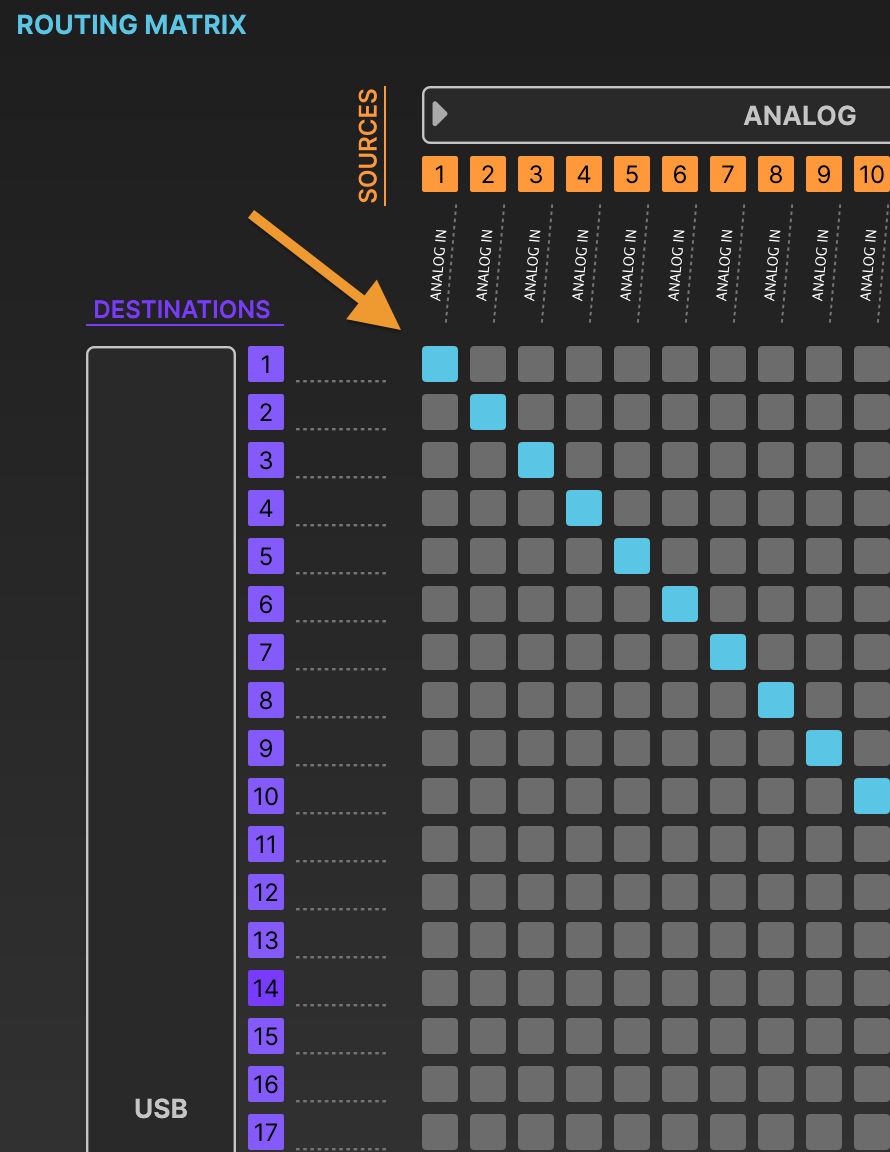

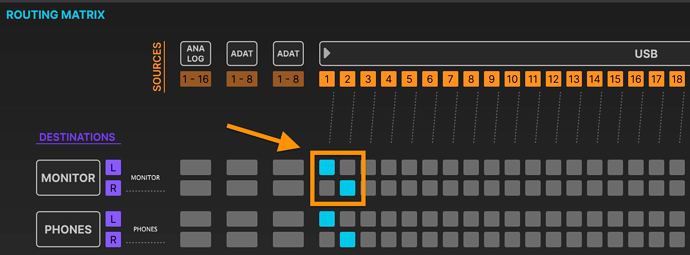

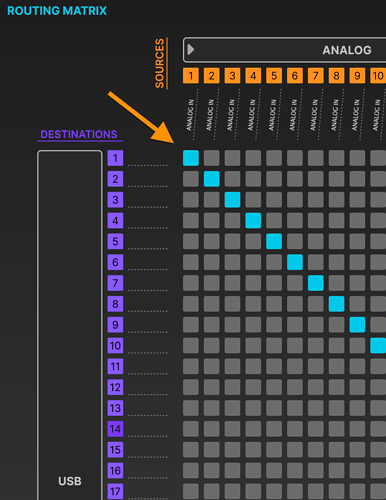

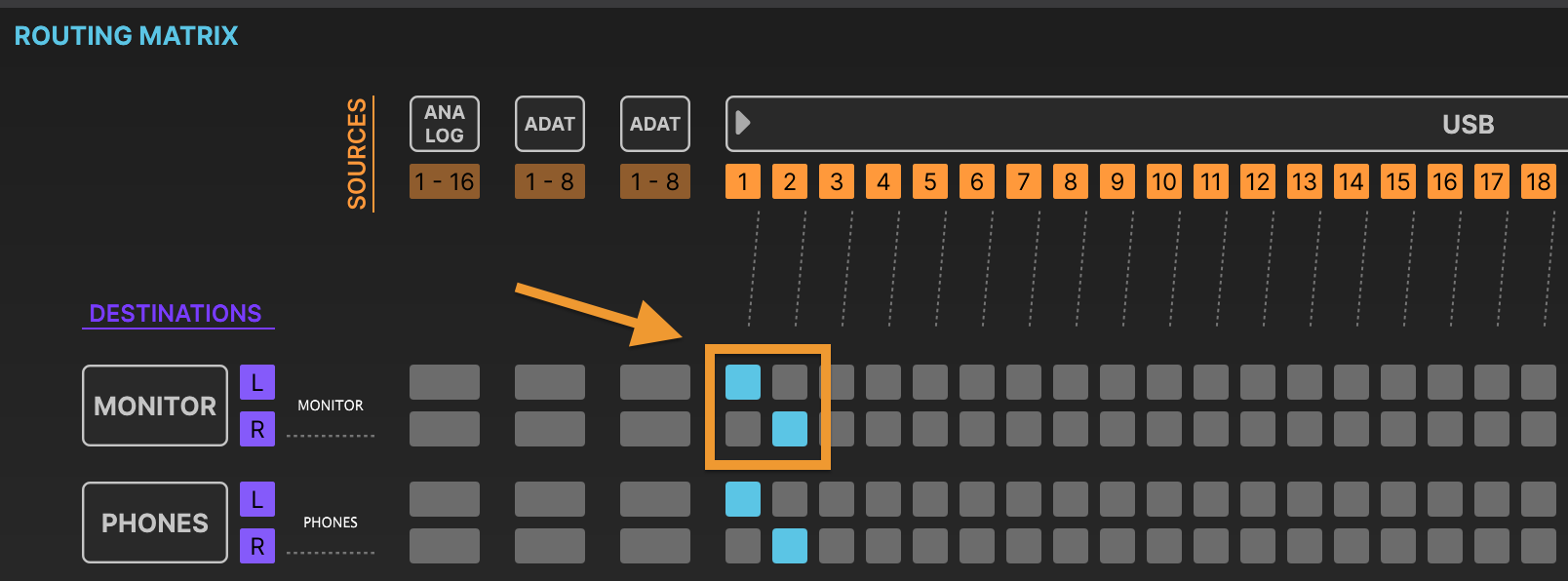

For example, the factory preset has analog input 1 routed to USB destination 1, and USB sources 1 & 2 routed to the monitor outputs.
If you are still getting feedback with this configuration, maybe you have something routing your input to your output in software?
