OS: Windows 10
DAW: Cubase 14 Pro
Plugin Version: 1.6.6.6366

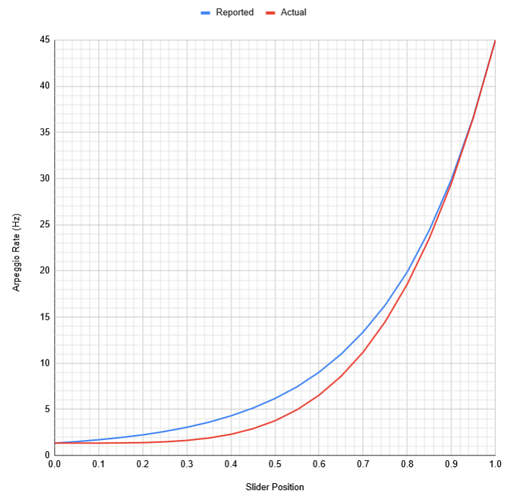

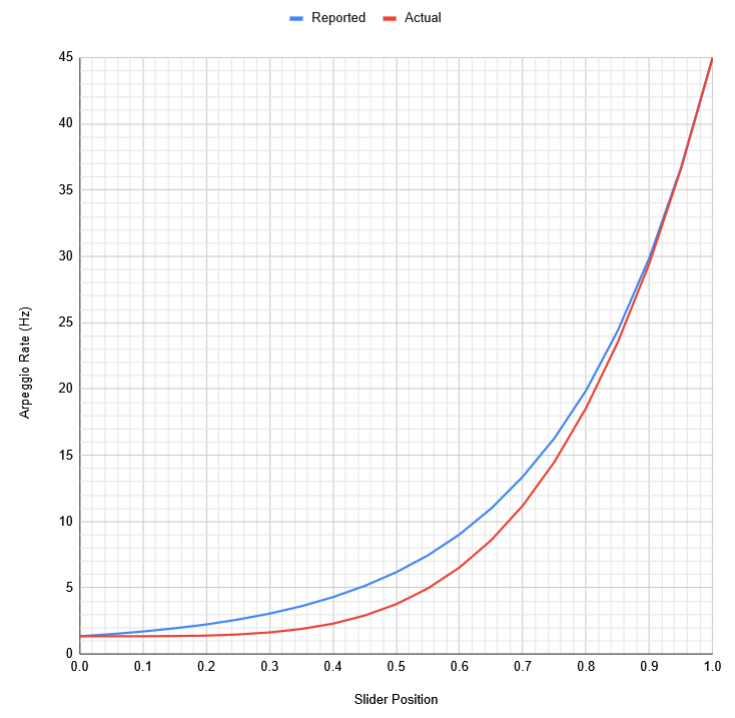

When in unsynchronised/free-running mode, the Arpeggio Rate is slower than the shown value for the majority of the range, by almost a factor of two in some places. It seems that the curve applied to the Arpeggio clock in the plugin processor is different from the one used to generate the string for the tooltip/DAW automation display. For what it’s worth, the curve used for the tooltip seems more correct to the hardware, as the actual rate currently remains almost flat for the first quarter of the slider travel. I took some measurements and plotted them to show the difference between the actual and reported rates:
