I can’t get any sound from Astrolab using audio in. I increased the gain and main outs. Do I haven’t to set up a preset? Can’t find any instructions. Thanks.
Hi @Kari,
I agree the manual could give info about this.
As far as i can understand from the sales page, then it’s for Vocoder presets. I also assume, that the preset shall be set to use the audio input.
Perhaps an Astrolab owner/ user can help more.
The inputs are in stereo, so I hope something more is planned. Thanks.
The AstroLab Audio In is used in conjunction with instruments that have an audio input feature.
As noted in the AstroLab FAQs on the Arturia website:
The stereo input can be used with the following supported instruments :
- KORG MS-20 V
- Vocoder V
- Buchla Easel V
- ARP 2600 V3
- Mini V3
- Pigments
Here are some templates to use the Stereo Inputs’ Dry Signal:
2 Likes
While Vocoder V is the most obvious application for the Audio In, please note that Vocoder V has 2 modes “Sample” (triggering samples through the vocoder) or “Voice” (using the audio input). Only the presets set to the “Voice” mode can be used with the Audio In.

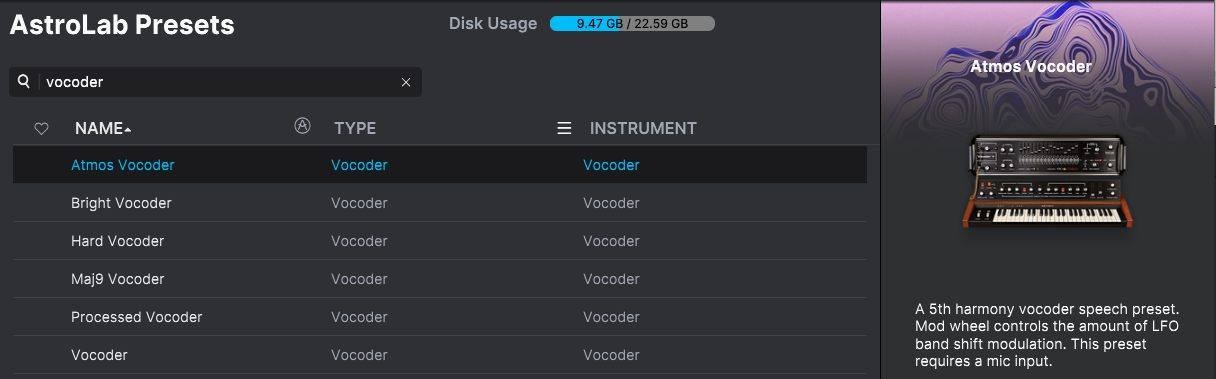

These are the “Voice” mode presets already included in AstroLab Library:
2 Likes
Pigments is probably the best option for using the Stereo inputs.
