16Rig and Ableton Individual Track Out Routings

[Logistika]

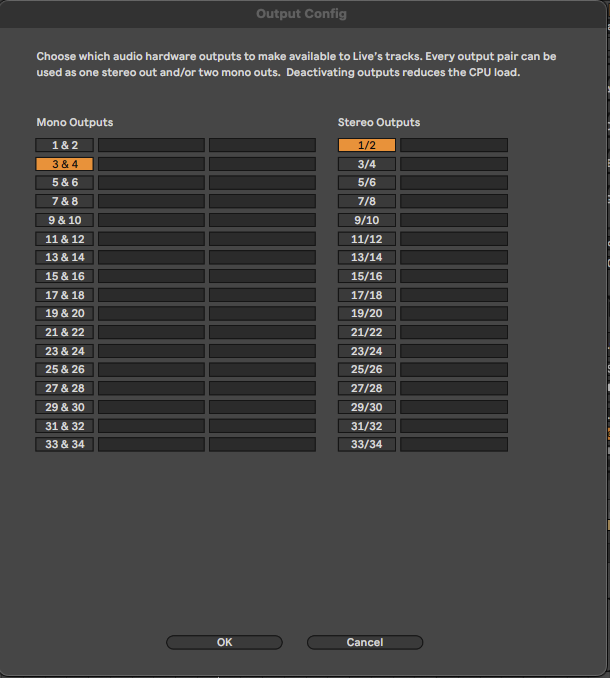

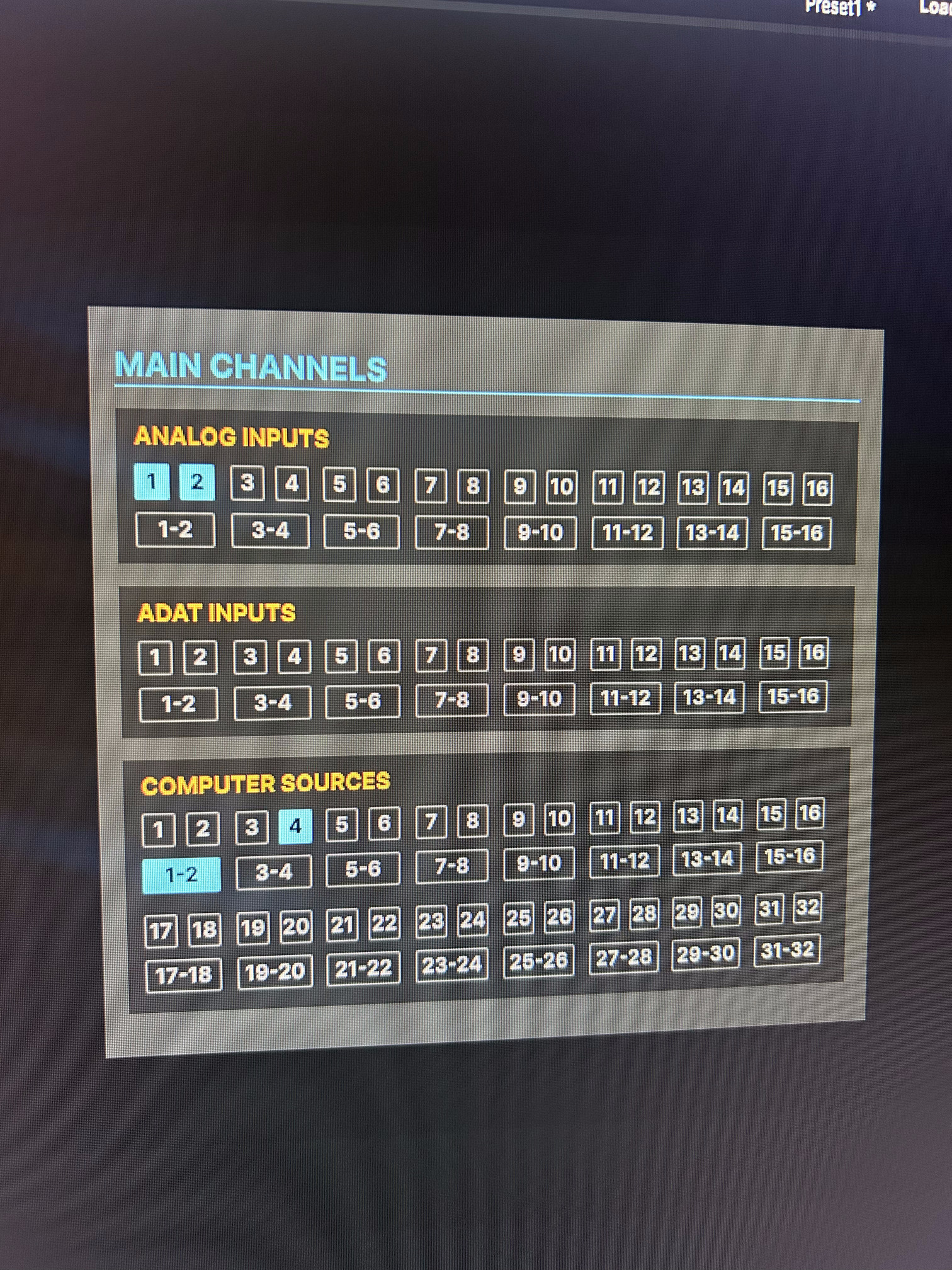

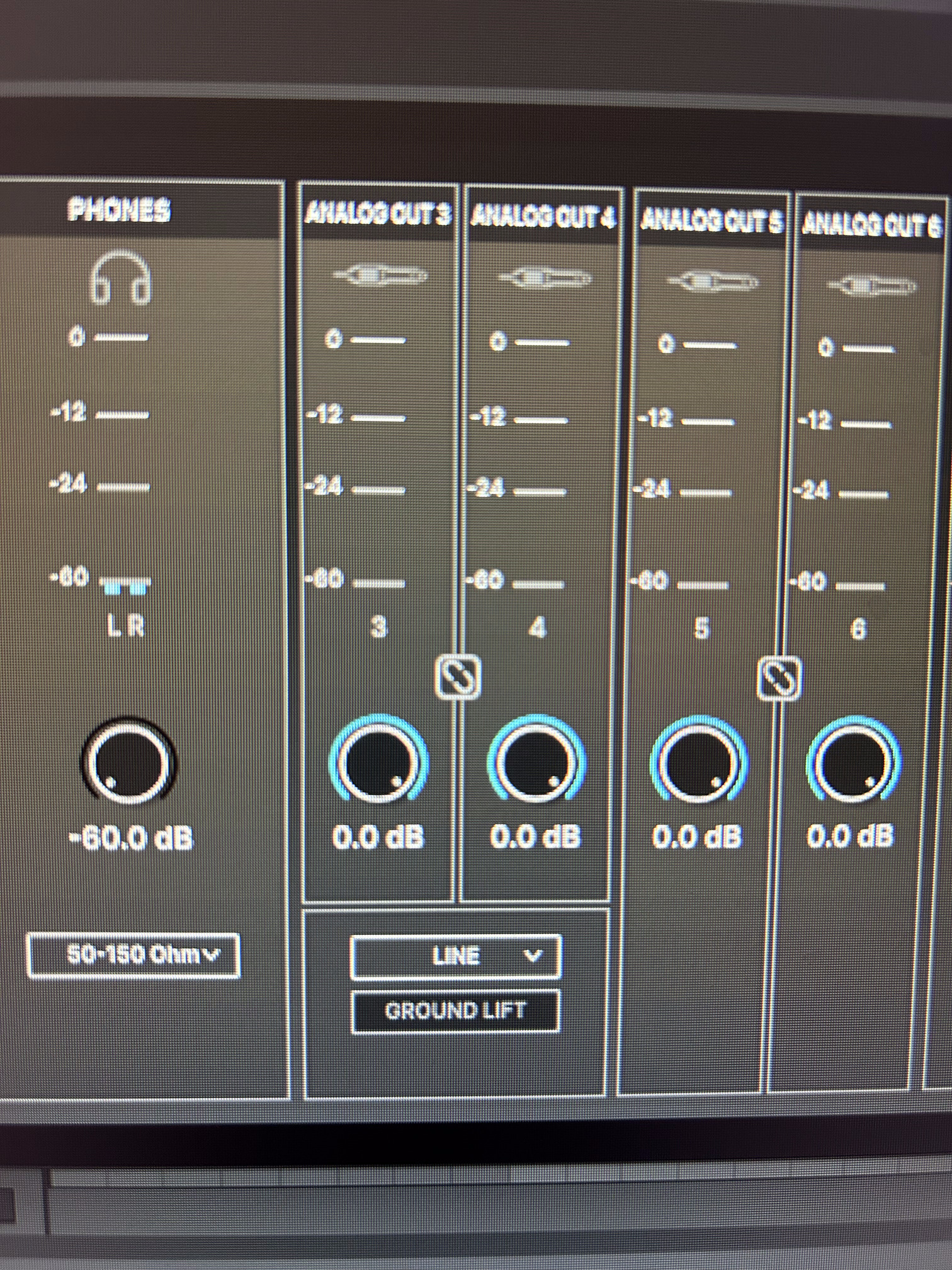

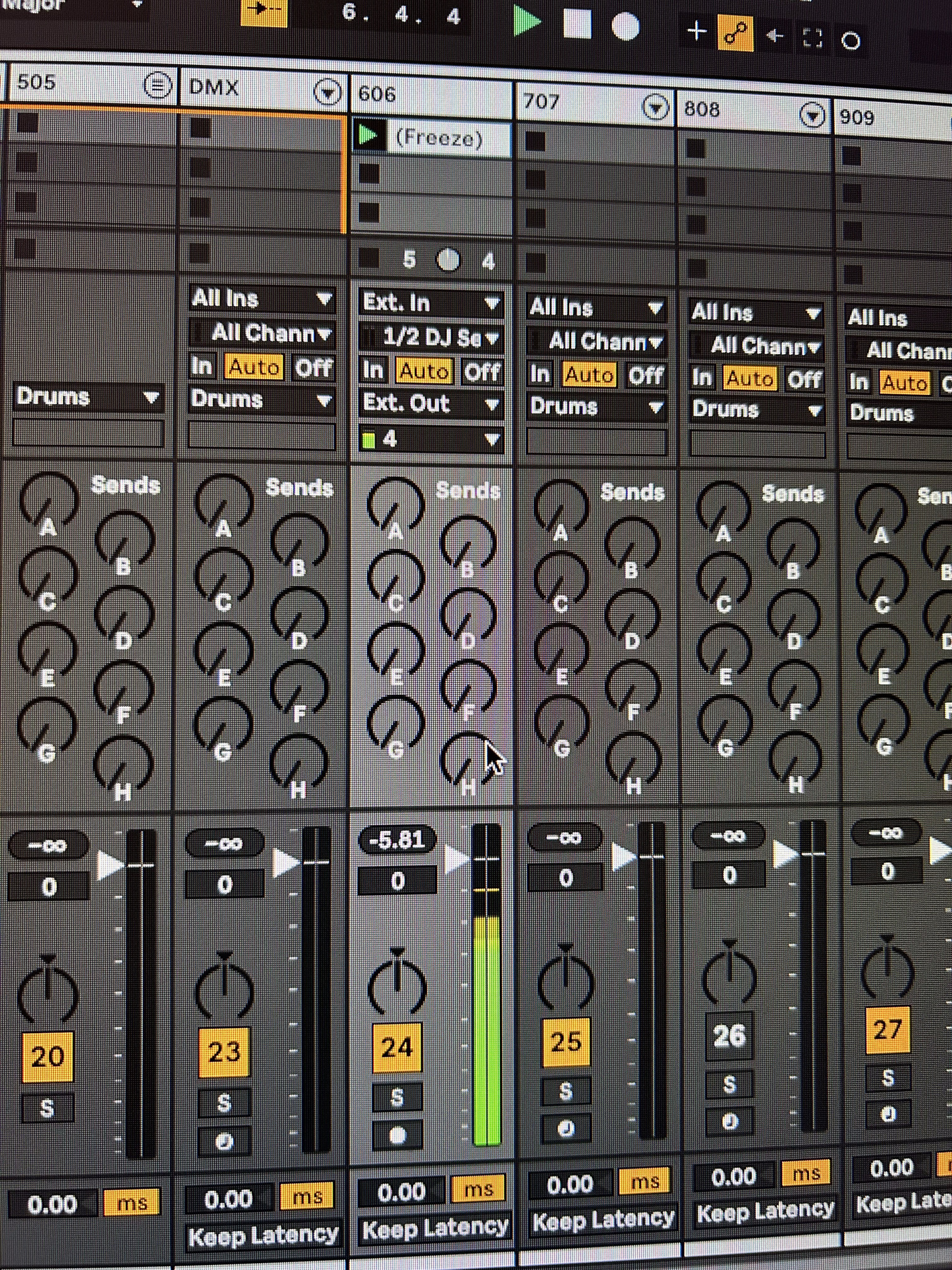

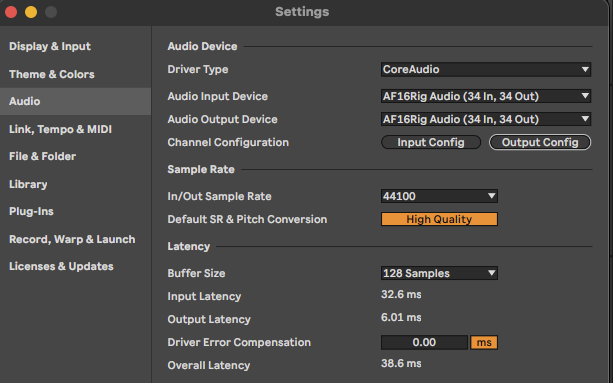

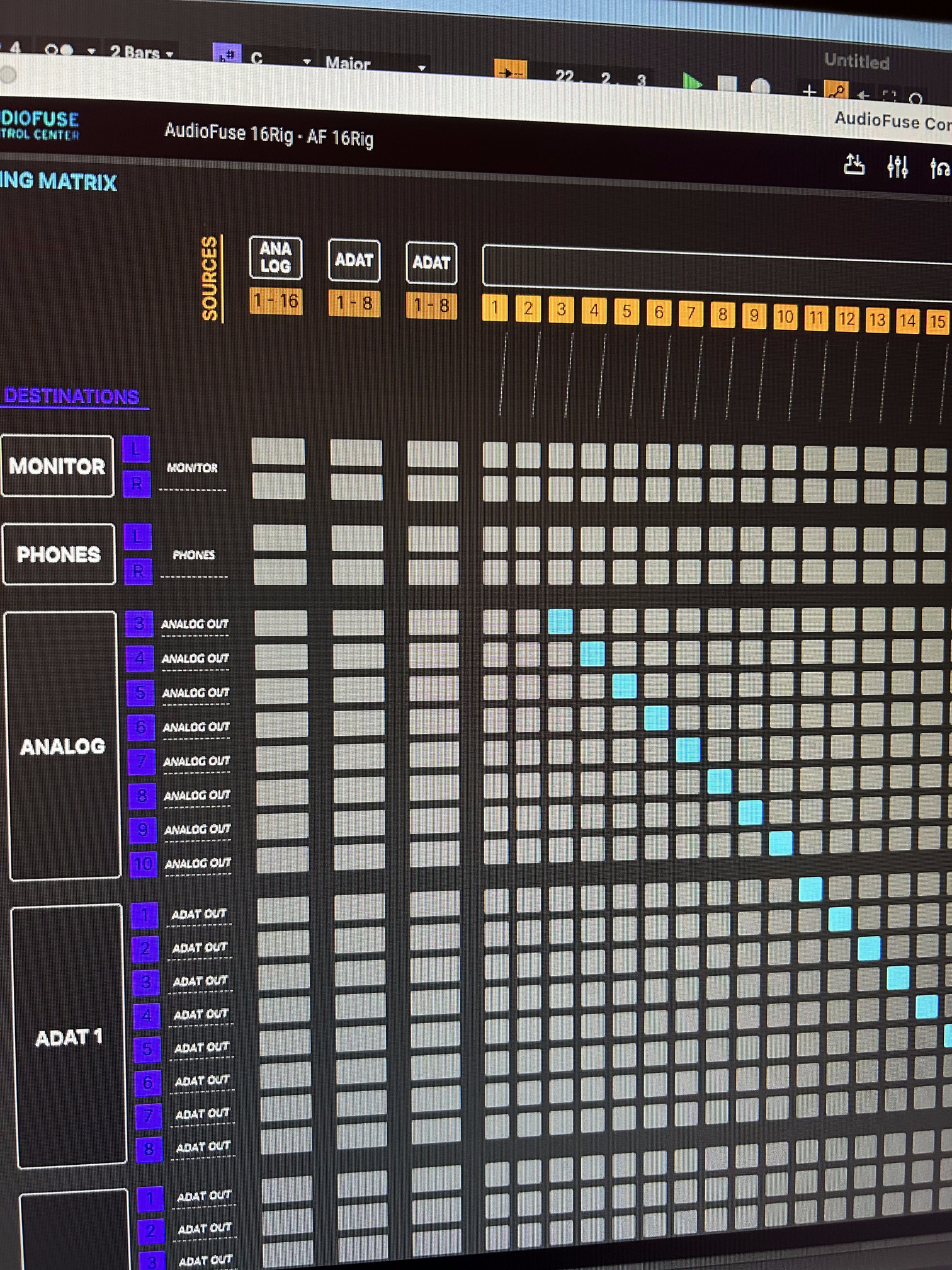

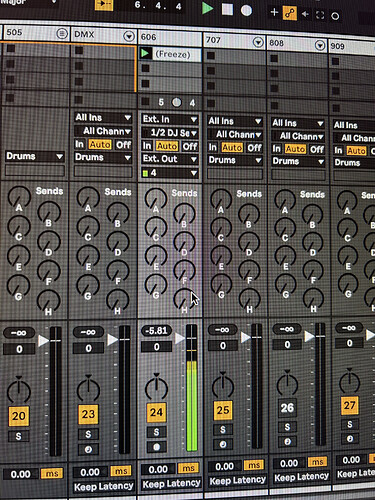

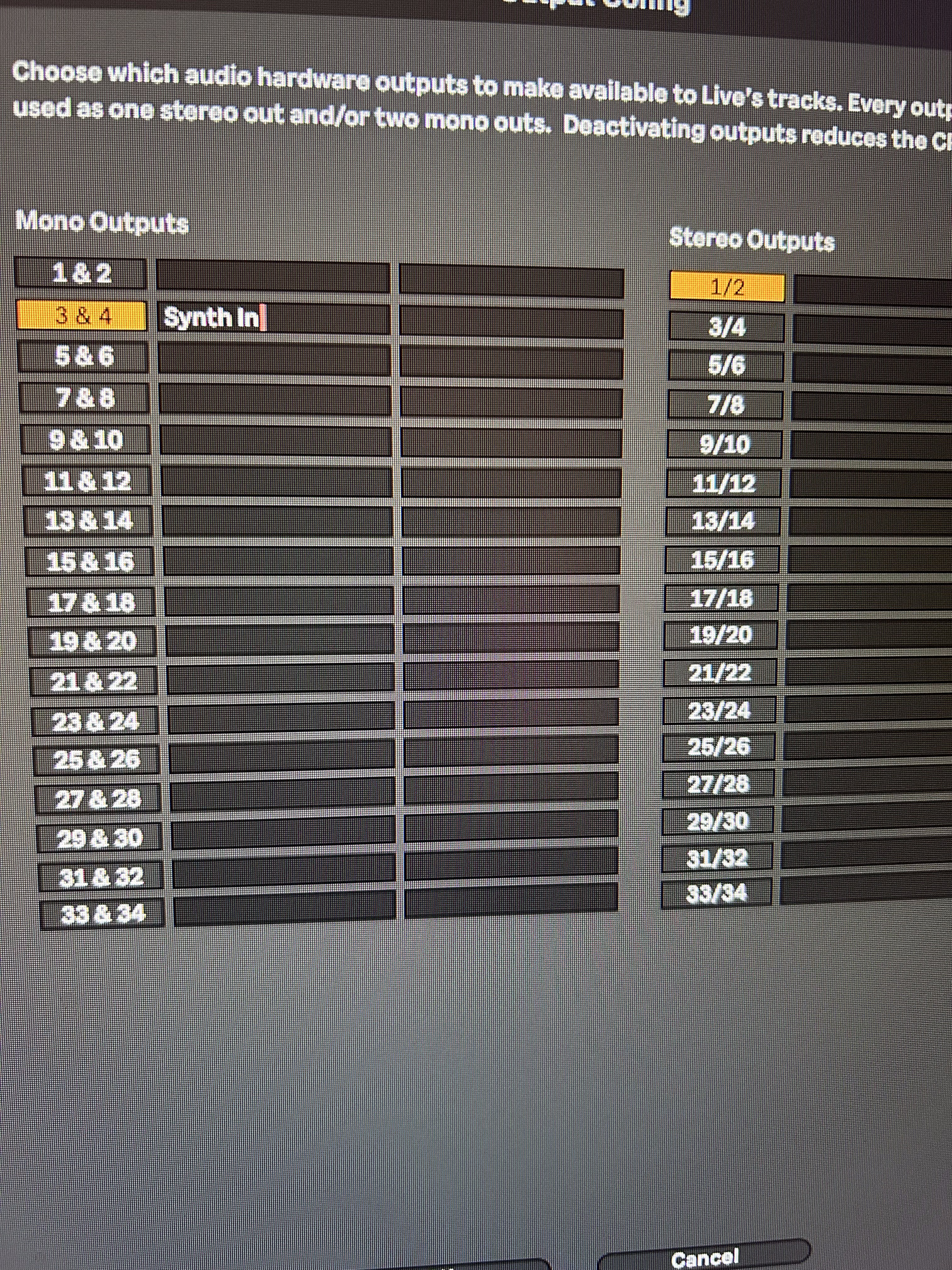

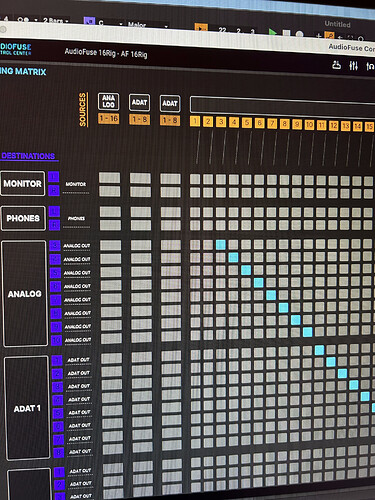

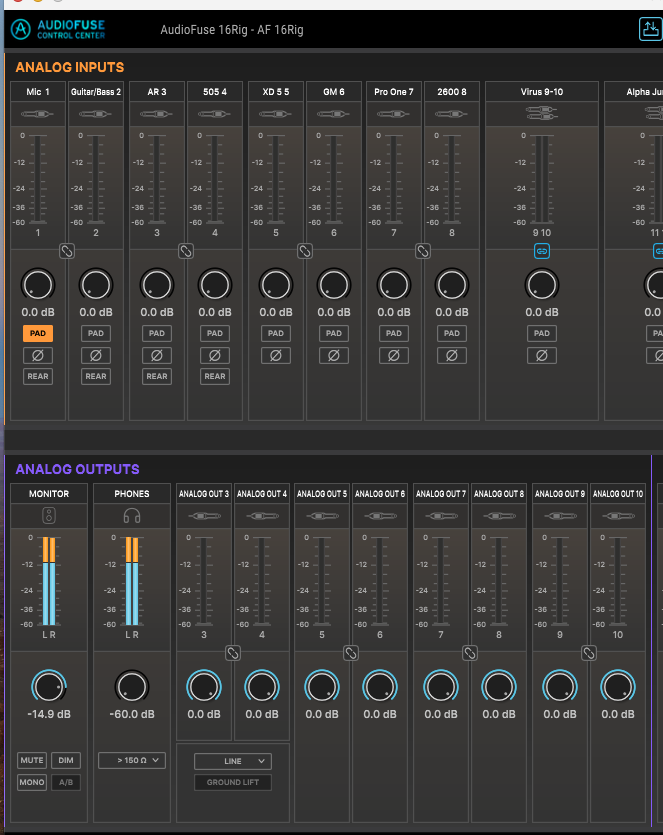

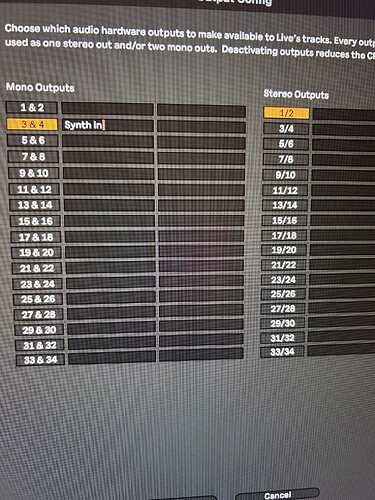

So I’m trying to send a single track’s recorded audio out from Ableton (USB 4)to one of the front panel outputs (output 4) but unable to get this to work. If I use the matrix to assign the master outs in ableton (sources 1-2) to output 4 I get signal but I can’t get it to work on single track routings. My settings/routings are below in the screengrabs.

Not sure if it matter but I’m on mac.

Been going a tad nutso trying to figure out why this isn’t working, hoping a kind soul can illuminate something which may highlight my stupidity here

[niks.arturia]

Hey,

Thanks for using the 16Rig!

The USB 4 should be routed by default to the Line Out 4, so you should se the Analog Out 4 meter moving in this config.

Please try to set a Factory preset from the 16Rig and give it another try:

If the issue persists, please contact our support team which will be able to help you.

https://www.arturia.com/fr/support/ask-for-help

Best,

[Logistika]

It’s very strange I can only get the mains out from ableton to the analog outputs on the 16rig. What am I missing here ?

[tmoore]

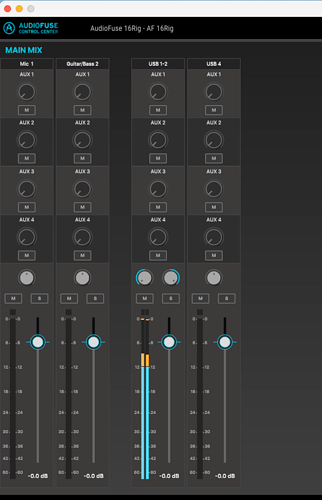

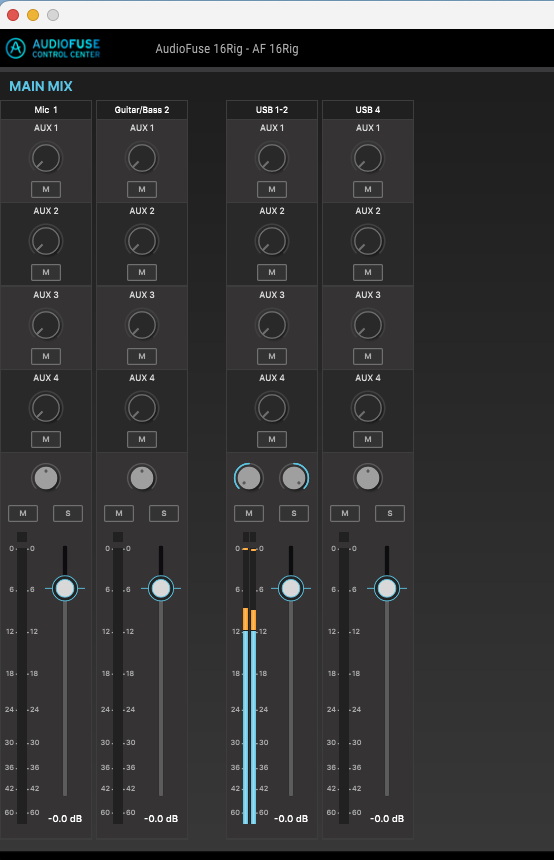

It’s hard to tell from just these screenshots. Can you see any signal on USB 4 in the Main Mix page?

P.S. on a Mac, pressing command-shift-3 will take a screenshot of your whole screen and save it to a file you can upload. This will have a better quality image and makes sure you can see everything on the screen.

[Logistika]

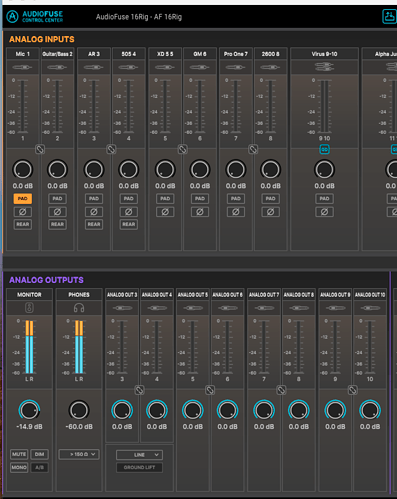

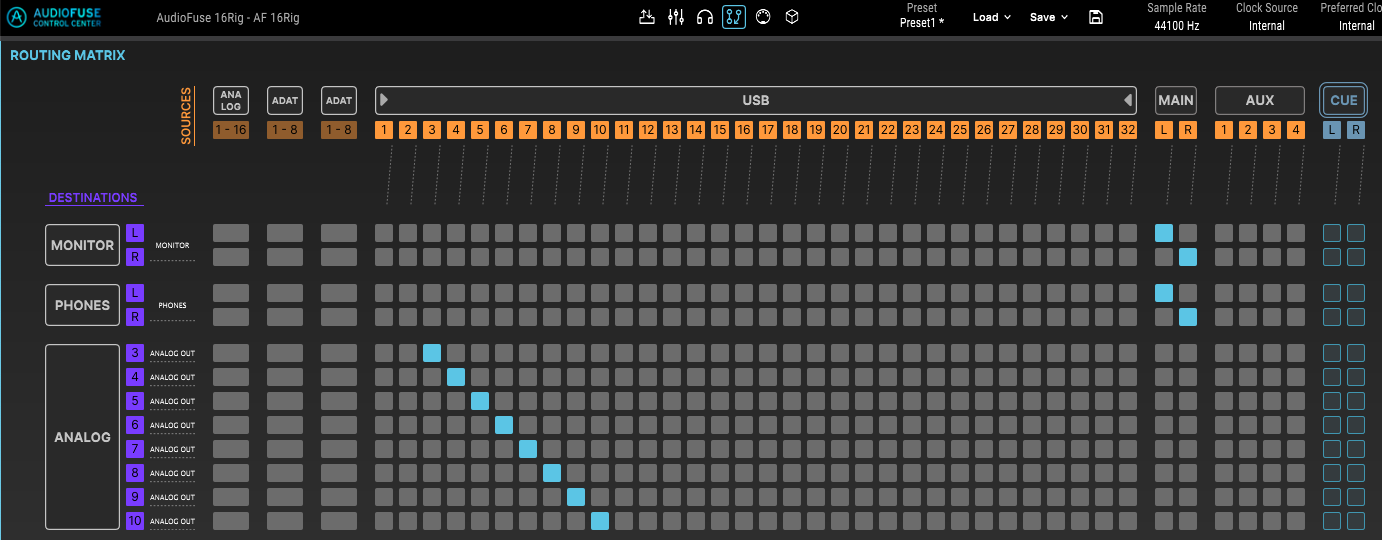

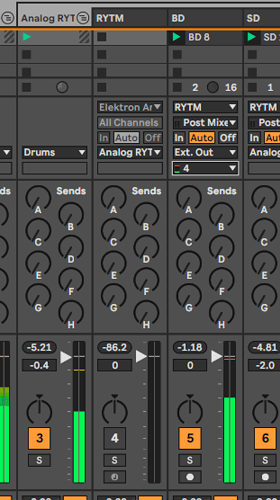

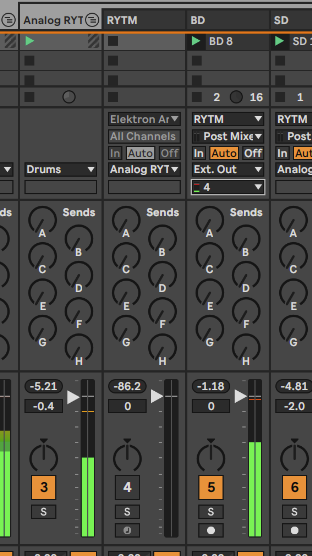

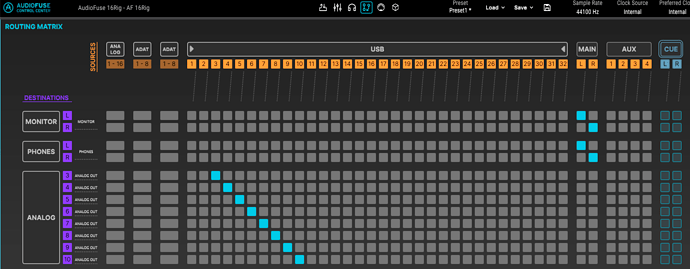

No I see no signal in the main mix page either. But Ableton shows signal being sent to the output. Lol sorry for the bad screencaps see below:

[Logistika]

[tmoore]

I’m stumped! I don’t see any problems with the configuration. Arturia support might be the way to go.

[Logistika]

I’m stumped too !!! Working through it with support but so far no solutions

[Logistika]

OK posting in case someone else has this issue. Turns out the App Loopback was the issue, I disabled/turned off the internal routing in loopback and it’s working now.

I use loopback for recording audio and video with ableton and videosync.

Long journey but I got there Phew.
